swissauto250 EFI VT1

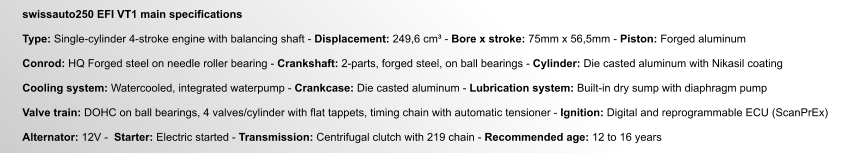

kg MAXIMUM POWER TORQUE THROTTLE BODY TOTAL WEIGHT REV LIMITER NOISE 40hp at 10150 RPM 31Nm at 8150 RPM 37mm straight butterfly-type 12000rpm Electronically restricted 27,7kg complete kit inclusive oil & water 91,6dB(A) Lamax-modus at 7,5m swissauto250 EFI VT1 main specifications Type: Single-cylinder 4-stroke engine with balancing shaft - Displacement: 249,6 cm³ - Bore x stroke: 75mm x 56,5mm - Piston: Forged aluminum Conrod: HQ Forged steel on needle roller bearing - Crankshaft: 2-parts, forged steel, on ball bearings - Cylinder: Die casted aluminum with Nikasil coating Cooling system: Watercooled, integrated waterpump - Crankcase: Die casted aluminum - Lubrication system: Built-in dry sump with diaphragm pump Valve train: DOHC on ball bearings, 4 valves/cylinder with flat tappets, timing chain with automatic tensioner - Ignition: Digital and reprogrammable ECU (ScanPrEx) Alternator: 12V - Starter: Electric started - Transmission: Centrifugal clutch with 219 chain - Recommended age: 12 to 16 years
Based on the 2010 EVOII EFI swissauto250 engine Launched in 2013

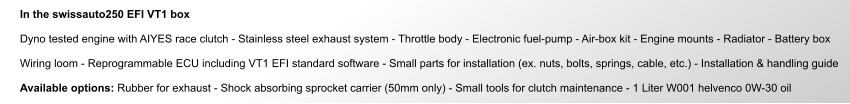

In the swissauto250 EFI VT1 box Dyno tested engine with AIYES race clutch - Stainless steel exhaust system - Throttle body - Electronic fuel-pump - Air-box kit - Engine mounts - Radiator - Battery box Wiring loom - Reprogrammable ECU including VT1 EFI standard software - Small parts for installation (ex. nuts, bolts, springs, cable, etc.) - Installation & handling guide Available options: Rubber for exhaust - Shock absorbing sprocket carrier (50mm only) - Small tools for clutch maintenance - 1 Liter W001 helvenco 0W-30 oil
producer of the swissauto250 engine !
